Continuous Integration with Node.js, Heroku and GitLab CI/CD -Part 2.

In the last part, we able to set up our git repository on GitLab set up our Node app with Express and write one unit test.

In this part, we’ll cover the following:

• Setup of the app on Heroku
• GitLab CI/CD configuration using the .gitlab-ci.yml file

GitLab repository:- https://gitlab.com/Mjeck/node-heroku-gitlab

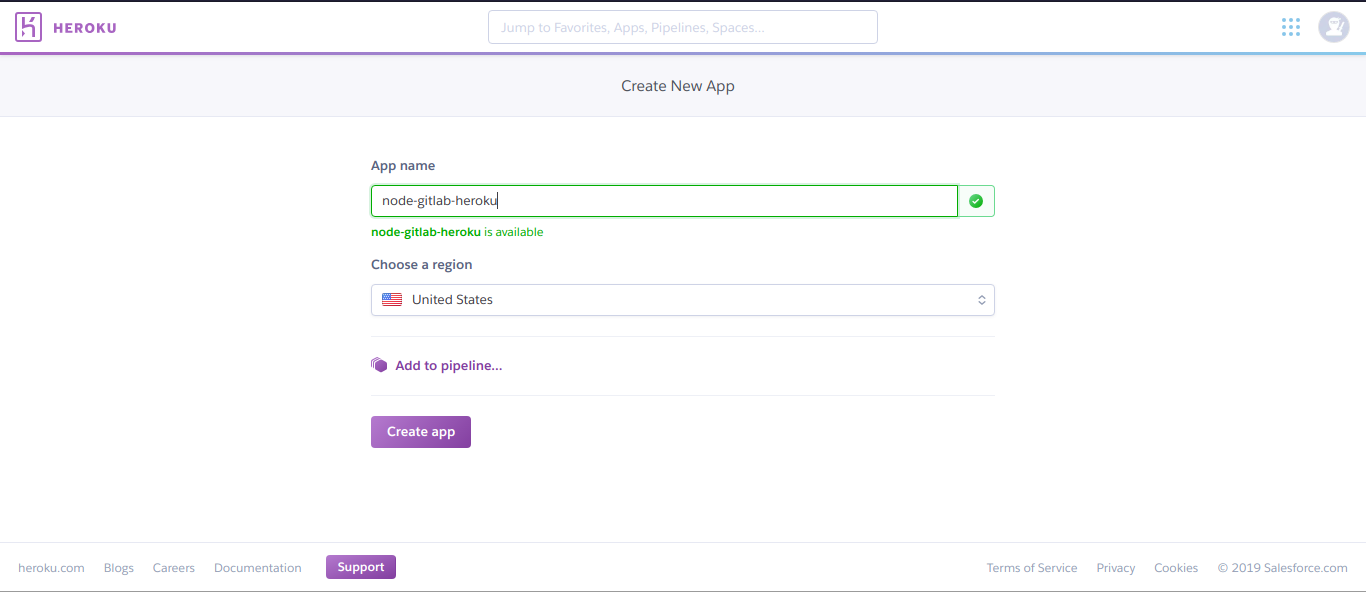

That done next is to create our app on Heroku. If you don’t have an account yet navigate to https://heroku.com and create a free account. With that done log on to your Heroku dashboard and create a new app.

Create a new app on Heroku.

Next, we go to our project directory in our code editor and create a new file and.gitlab-ci.yml paste the following code.

# Node docker image on which this would be run
image: node:8.10.0

cache:
  paths:
    - node_modules/

stages:
  - test
  - deploy_production

# Job 1:
Test:
  stage: test
  script:
    - npm install
    - npm run test

# Job 2:
# Deploy to staging
Production:
  image: ruby:latest
  only:
    - master
  stage: deploy_production
  script:
    - apt-get update -qy
    - apt-get install -y ruby-dev
    - gem install dpl
    - dpl --provider=heroku --app=$HEROKU_APP_NAME --api-key=$HEROKU_API_KEY

We added two jobs test and deploy_production to run our test and deploy our app to Heroku. Both containing scripts to carry out there assigned tasks

In the above file on line 30, we defined two variables YOUR_APP_NAME and HEROKU_API_KEY these two variables would be defined in our environmental variables on GitLab, where HEROKU_APP_NAME is the name of your app on Heroku and HEROKU_API_KEY been your user account API key on Heroku. Let’s go to our Heroku profile and copy our API key.

Click on the profile avatar and select Account settings to navigate to your account page.

heroku dashboard.

click on reveal to the API key, copy the key for we’ll use it while setting up our environmental variable on GitLab.

Navigate to the CI/CD settings page for your project and set the environmental variables for your project.

It’s time to commit and push our work people to GitLab people. Go to your project repository on GitLab and select CI/CD and select jobs. You should see the current pipeline running, it should be something like this.

image of current pipeline running on gitlab.

all jobs passed

You can see our pipeline ran our test job first before running our production job, you can click on any of the jobs to view details for each job.

Now let's go to our app dashboard on Heroku and click on Open app on the top right corner.

Whoo hoo we made it 😃

So we’ve successfully deployed our app on Heroku from our GitLab environment. So below is the list of endpoints we created you can go ahead and test them on Postman.

POST /api/addRequest Body: firstNumber, secondNumber

 Happy coding you all
